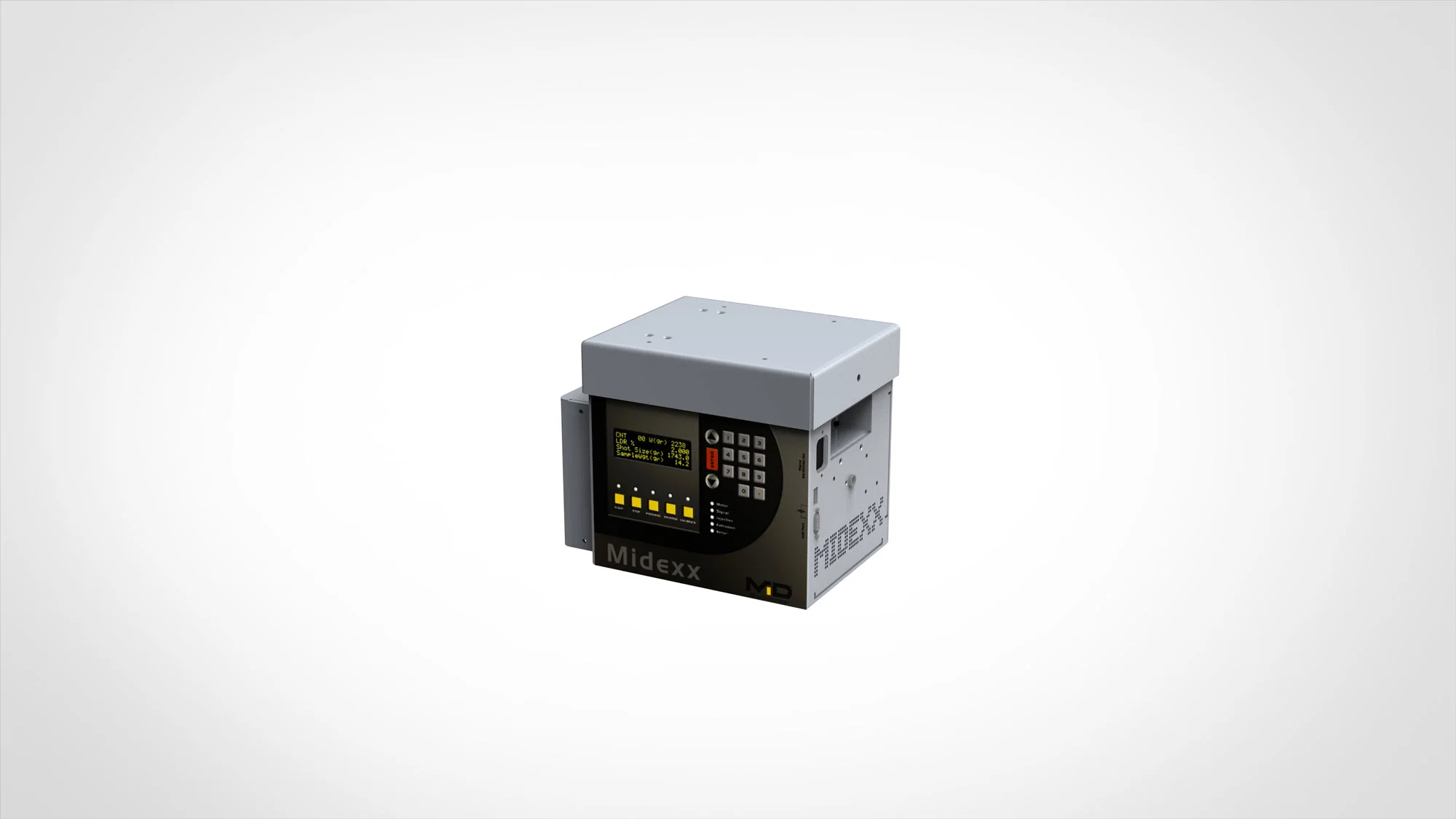

Liquid Color Dosing System MIDEXX-GR50

MIDEXX™ Gravimetric Liquid Color Dosing System with 50kg Scale Platform

MID proprietory Gravimetric liquid color dosing and dispensing system is an innovative, durable and convenient equipment to achieve accurate liquid color dosing and fast color changes. Pair with MID liquid color pumps to achieve unrivaled liquid color application.

MIDEXX™ Gravimetric for liquid color dosing is a loss in weight system which utilizes a very accurate scale system, it requires no calibration and compenstates for fluctuations in material density and wear on equipment and tubing. Shot size and LDR are the only inputs required to start dispensing. The liquid dosing pump will self calibrate continuously.

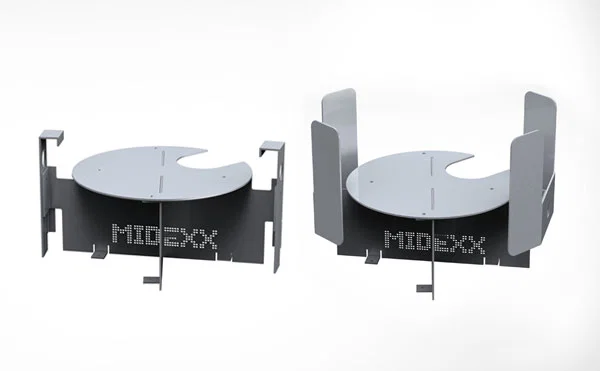

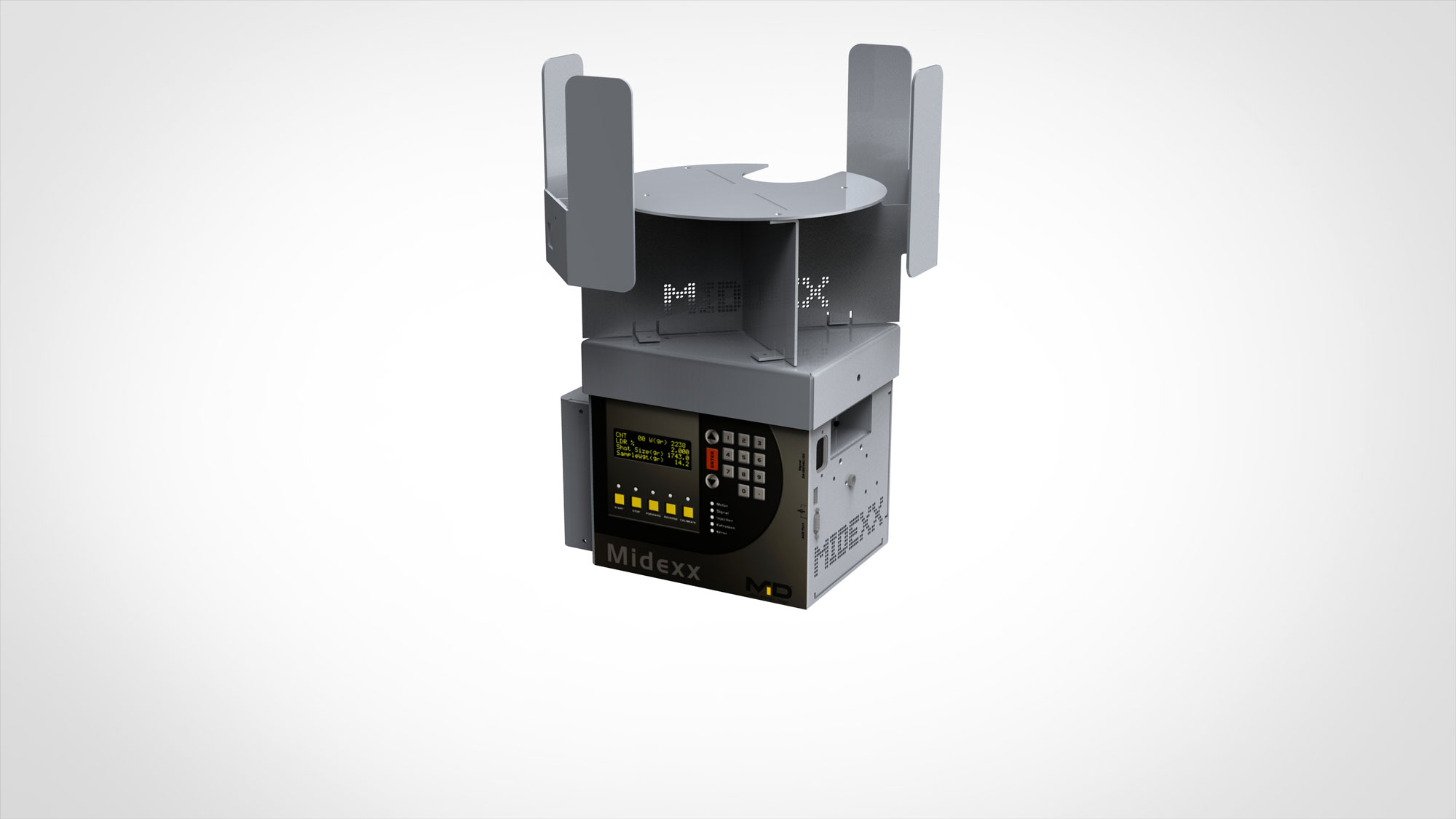

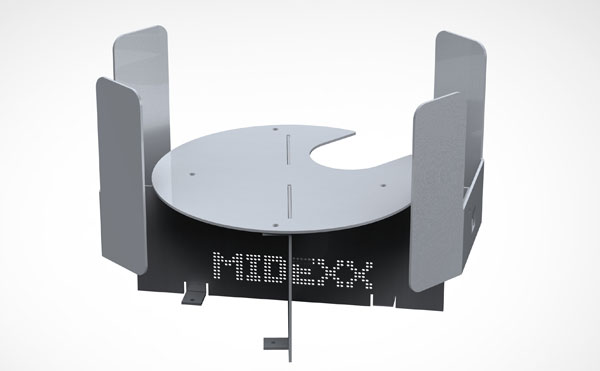

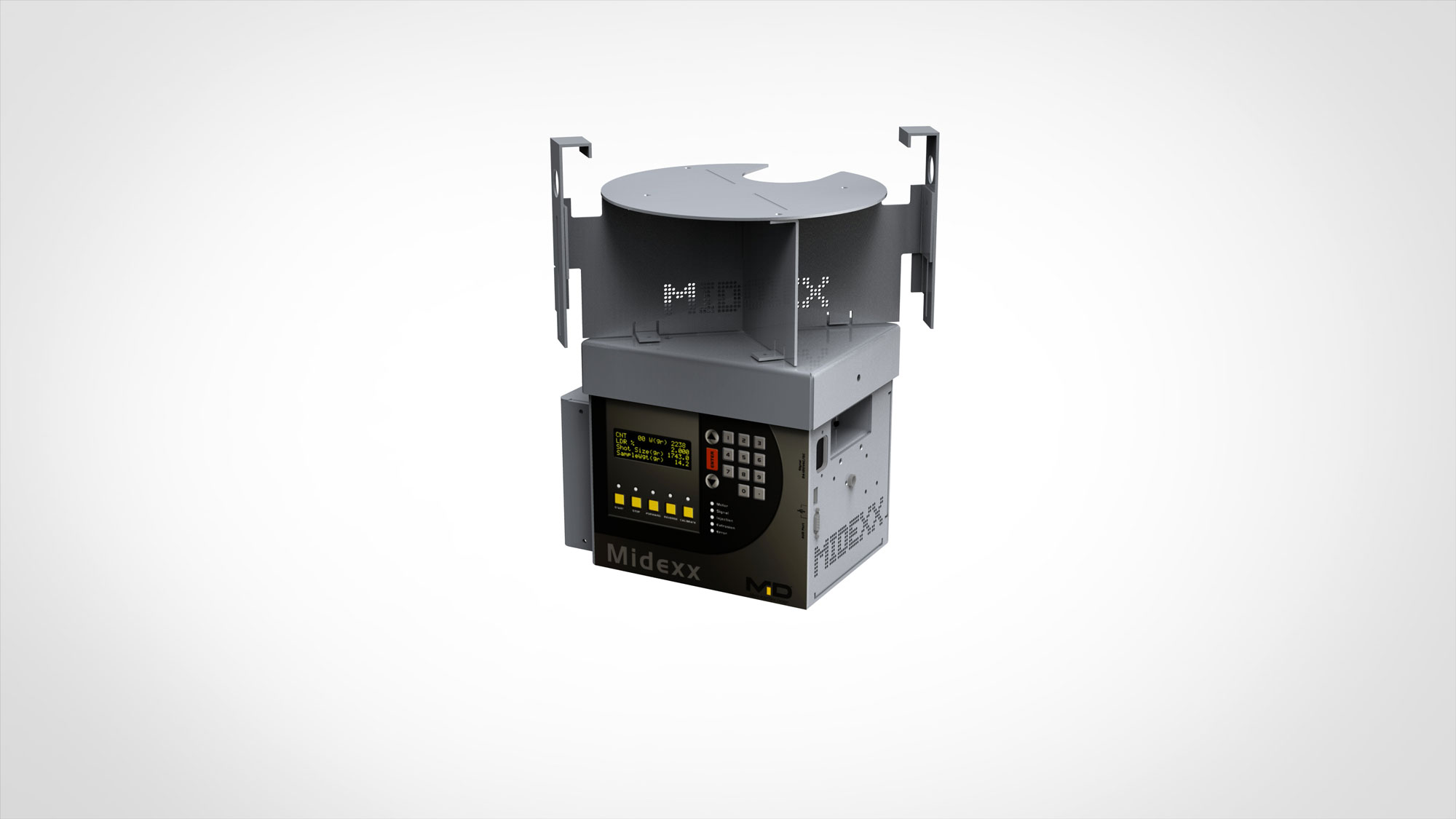

MID’s revolutionary design of the container holder enables fast color changes and little waste of colorant.The optional quick disconnect tubing makes the changing of the colorant easy with no mess for both color dosing pumps and reservoir.

Pair with MID-PCP (Progressive Cavity Pump) or Aluminum Peristaltic Pumps to achieve best liquid color application!

Liquid Color Pumps

Progressive Cavity Pump

Liquid Color Pumps

Aluminum Peristaltic Pumps

Liquid Color Dosing Controllers

MIDEXX-3D for Continuous Dosing

10kg

Unit Weight

Gravimetric

Type

Wi-Fi/Ethernet

Connectivity (optional)

2 Year

Warranty

  • Peristaltic, Progressive Cavity Drive
  • Volumetric and Gravimetric modes
  • Stepper Motor Drive for precise metering
  • Injection and Extrusion modes
  • Automatic adjustment to injection cycle recovery time variations
  • Automatic or manual calibration
  • Automatic storage of settings during power down
  • Electrical power input of 100-220 VAC, 50/60 Hz
  • Unit Weight = 10Kg
  • Two year warranty
  • USB connection
  • Wifi connectivity (optional see Remote Monitoring and Control)

Model: MIDEXX-GR50 | Motor Speed: 0.7-300 (rpm)

Dimension (width): 305 (mm) 12 (inch) | Dimension (length): 356 (mm) 14 (inch) | Dimension (height): 381 (mm) 15 (inch)

Weight: 10 (Kg) 23 (Ibs)
