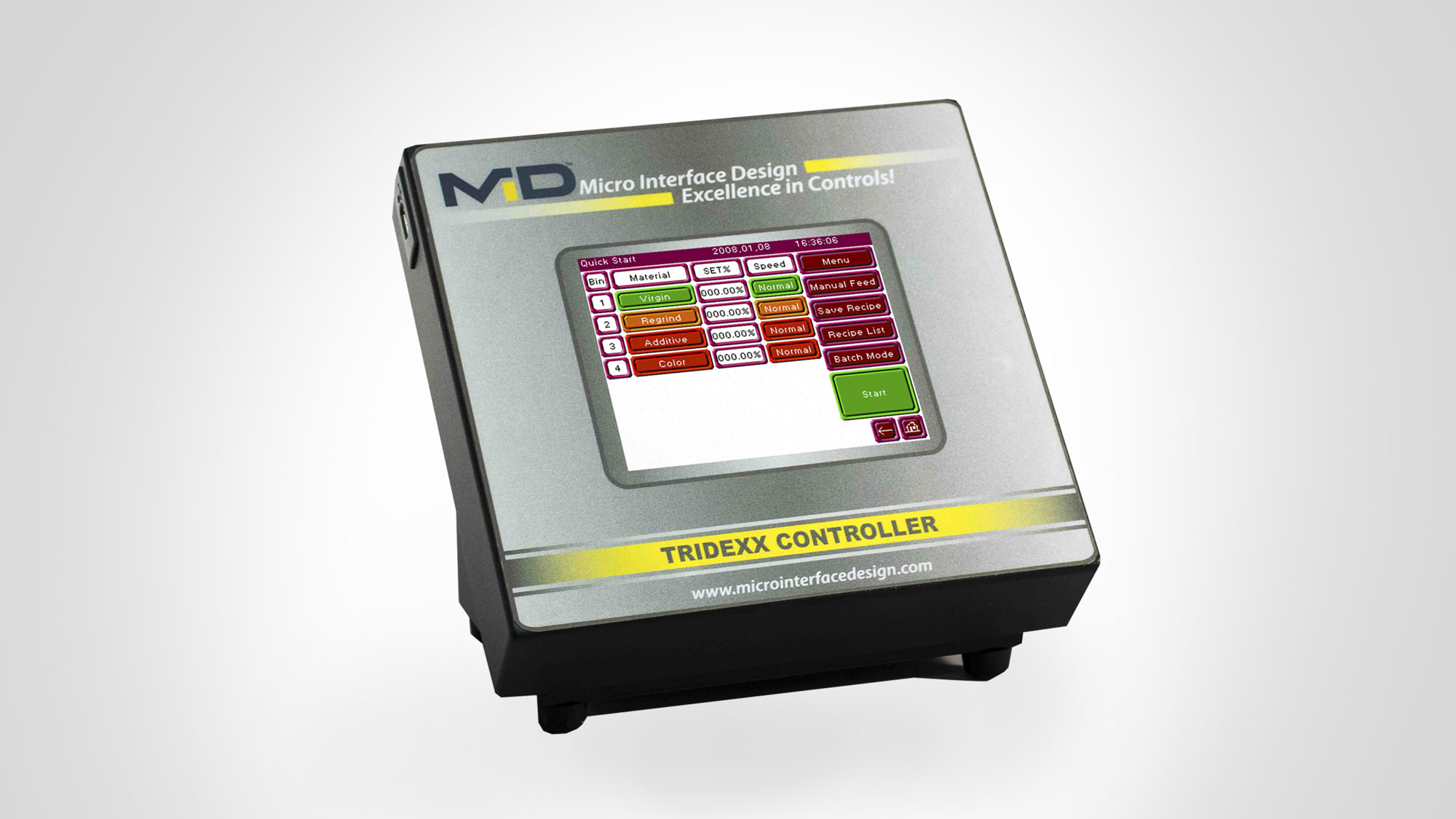

TRIDEXX™ Blender Controller

Tridexx’s all in one design with HMI for blender and material handling make it the most compact blender controller in the world! Touch Screen and multi language available.

TRIDEXX™ from MID is designed for simplicity and very user friendly operation. Tridexx’s all in one design with HMI for blender and material handling make it the most compact blender controller in the world! All the IO’s necessary for a blender up to 8 ingredients, 8 loaders and one vacuum pump is available in one box!

The large easy to see buttons and numbers on the touch screen make it easy to operate in all types of light conditions and ensures the operator has a large button area to make changes or adjustments in the operation of the blender. The Tridexx controller operates vibratory linear feeders, slide gates, pinch valves and mixed.

Tridexx is the artful mix of simplicity and utility while maintaining a leading edge in control technology.

2

Models

Color Touch Screen

Display

USB

Host

2 Year

Warranty

  • Controls up to 8 ingredients using a variety of feeders, slide gate, pinch valve, auger or vibratory
  • Active Vibration Cancellation system can achieve 0.05 grams of accuracy in a high vibration environment
  • MID proprietary Dymanic Adaptive Control algorithms
  • Smart Regrind Mode
  • Anti Bridging Algorithm
  • Material Name Database
  • Recipe storage, retrieval and tunning on the fly
  • Customized screen color preferences and designs
  • Automatic storage of settings during power down
  • Software upgrade capability via internet
  • Color touch screen user interface
  • 60 optically isolated 24V I/Os that can handle up to 600mA Load
  • 24bit Analog/Digital input with very low noise excitation for load cells
  • Onboard power supply 5V/3.3V and high current isolated 24V for I/Os
  • Built in ETHERNET and serial RS 232
  • Built in USB Host and Printer Port
  • Electrical power input of 100-240 VAC, 50/60 Hz
  • One year warranty on screen
  • Two year warranty on hardware

Model: TRIDEXX-4 | Number of Materials: Up to 4

Dimension (width): 254 (mm) 10 (inch) | Dimension (length): 203 (mm) 8 (inch) | Dimension (height): 228 (mm) 9 (inch)

Weight: 2.7 (Kg) 6 (lbs)

Model: TRIDEXX-8 | Number of Materials: Up to 8

Dimension (width): 254 (mm) 10 (inch) | Dimension (length): 203 (mm) 8 (inch) | Dimension (height): 228 (mm) 9 (inch)

Weight: 2.7 (Kg) 6 (lbs)
