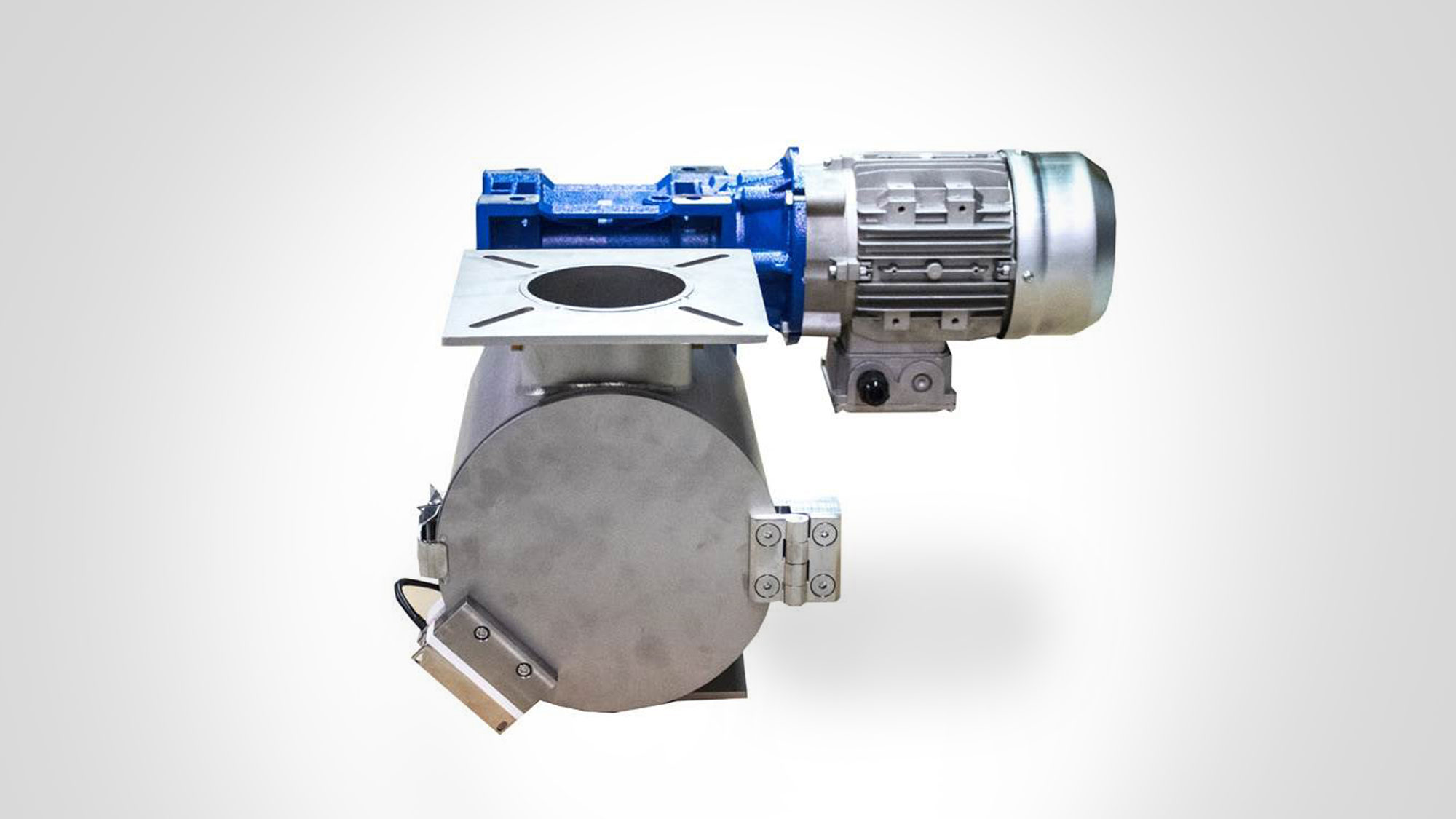

MID Pre-mixer

MID Pre-Mixer series are powerful and rugged stainless steel mixers designed for continuous mixing of resin, regrind or additive for continuous production under extreme temperature conditions.

MID-PM pre-mixer series are powerful and rugged stainless steel mixers, designed for continuous mixing of resin, regrind or additive for continuous production under extreme temperature conditions. MID-PM pre-mixer can be installed directly at the throat of the processing machine and can guarantee a perfect mix for extremely low dosages of liquid colorant. The MID-PM series offers rugged design and excellent mixing characteristics, all this results in significant cost saving by preventing down time and over coloring of the resin.

27kg

Unit Weight

Stainless Steel

Material

Continuous Mixing

Type

2 Year

Warranty

  • Nominal operation temperature up to 200C
  • All welded Stainless Steel
  • Easy Access through hinged door
  • High temperature magnetic Safety door switch
  • Polished Stainless steel for easy cleaning
  • Easy removal of mixer impeller for fast color change.
  • Special No-Grind impeller
  • No Sharp Blades
  • Dual injection ports

Model: MID-PM | Motor Speed: 0.7-120 (rpm)

Dimension (width): 508 (mm) 20 (inch) | Dimension (length): 546 (mm) 21.5 (inch) | Dimension (height): 330 (mm) 13 (inch)

Weight: 27.2 (Kg) 60 (lbs)
