InteliLoad? Central Loader Control Solution

Material Loader Controller

Advanced electronic design for central material handling distribution system and enhanced flexibility for customization. Controls for up to one hundred loaders with two supply vacuum pumps.

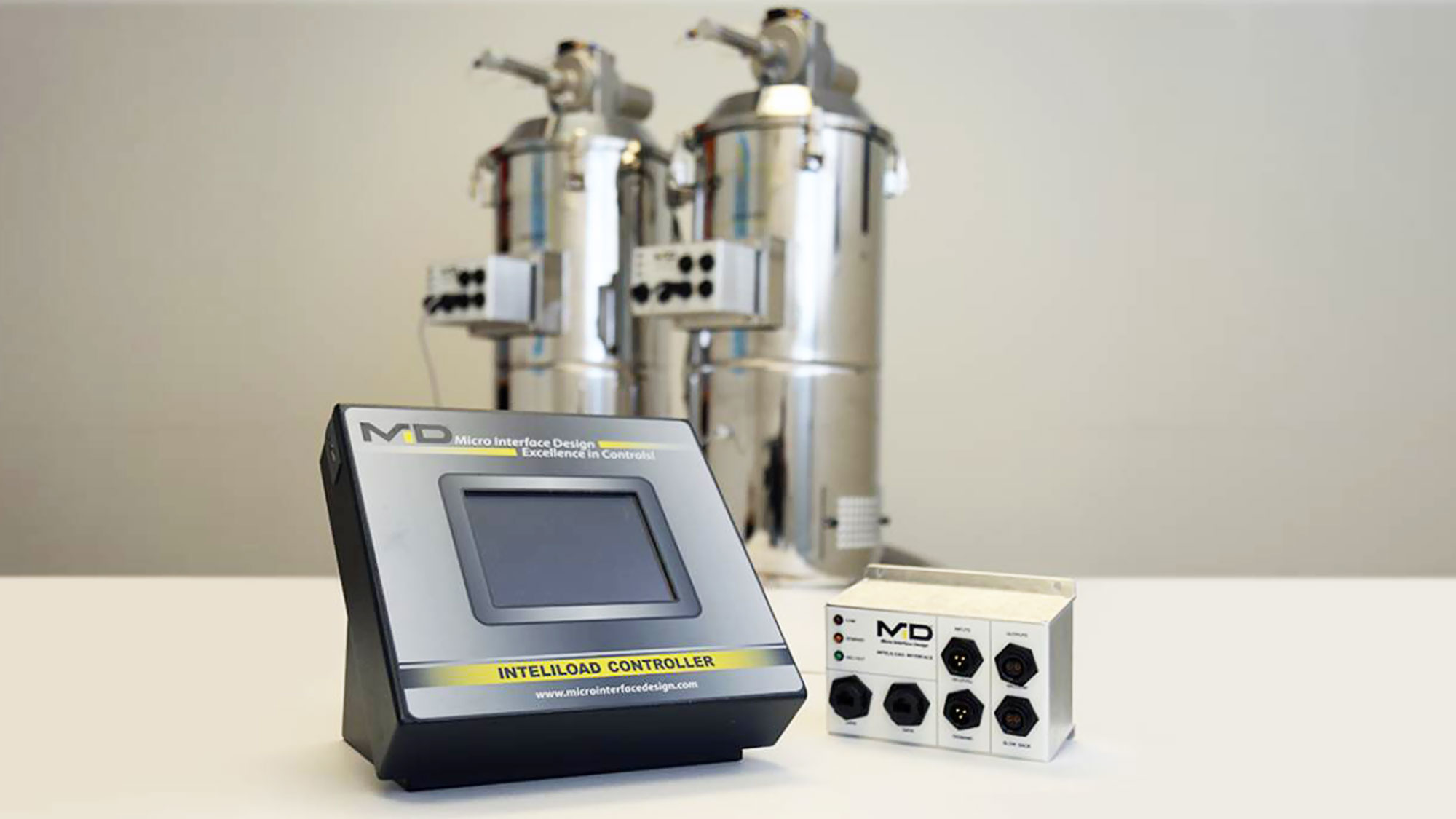

InteliLoad Material Loader Controller

The new InteliLoad? Loader Control Solution controls for up to one hundred loaders with two supply vacuum pumps.The InteliLoad has advanced electronic design for central material handling distribution system and enhanced flexibility for customization. Equipped with color touch screen operator interface (compared to push button) , the InteliLoad user friendly graphics has slim, modern & innovative profile. The InteliLoad? contains software, hardware and interface.

100 Loaders

Control Capacity

Color Touch Screen

Display

2 Year

Warranty

InteliLoad? 1200 series Software:

  • Controls up to 100 loaders
  • Compatible with one or two vacuum supply pumps
  • MID proprietary Dual Level Priority ?DLP? algorithm. Two level priority feed -FIFS based combined with operator defined priority settings.
  • Customized ability to switch between time based or volumetric feed
  • Customized screen color preferences and designs
  • Automatic storage of settings during power down



  • Intelligent Loader Interface module obtains commands through serial communication, retaining variables at loader
  • Programmable filter clean pulses for loader and pump
  • Layering of two materials with programmable percentage in each loader
  • Purge feature to allow complete emptying of supply pipeline
  • No fill alarm
  • Communication Alarm
  • Demand on/off LED

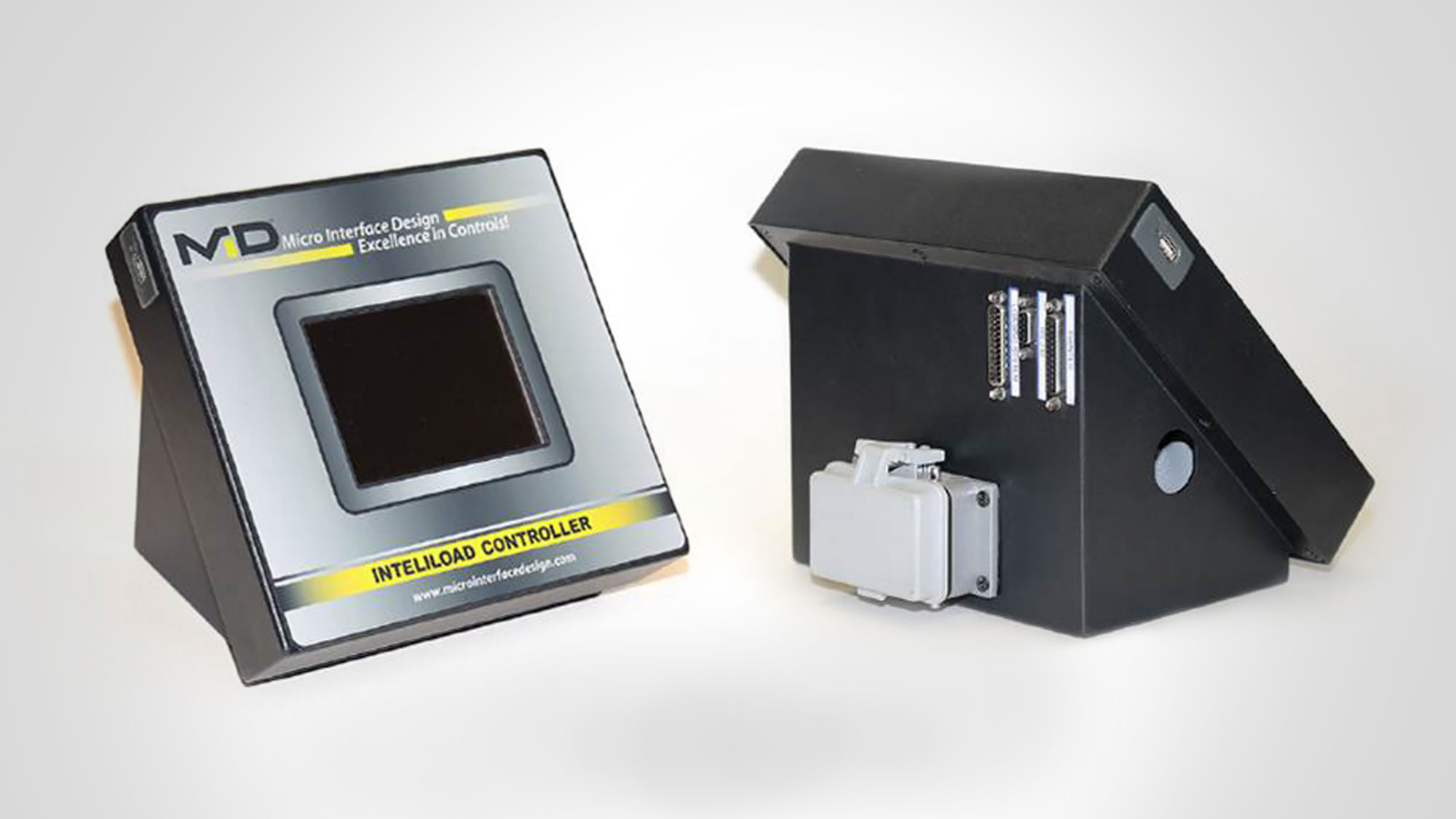

InteliLoad? 1200 series Hardware:

  • Dimensions: height 7.5″, width 10″, depth 9.5″
  • Weight: 6 pounds
  • Electrical power input of 120 or 240 VAC, 50 or 60 Hz
  • Onboard power supply 5v/3.3v and high current isolated 24v for I/Os
  • 6 optically isolated 24V I/O that can handle up to 600mA Load
  • Color touch screen user interface, 320 x 240, 5.7 inch color screen
  • Software upgrade capability via internet



  • CPU is an ARM core based 32bit microprocessor
  • 4MB Flash and 2MB RAM
  • Built in Serial RS232 and RS485
  • Real time Clock
  • Battery backup RAM
  • One year warranty on screen
  • Two year warranty on hardware

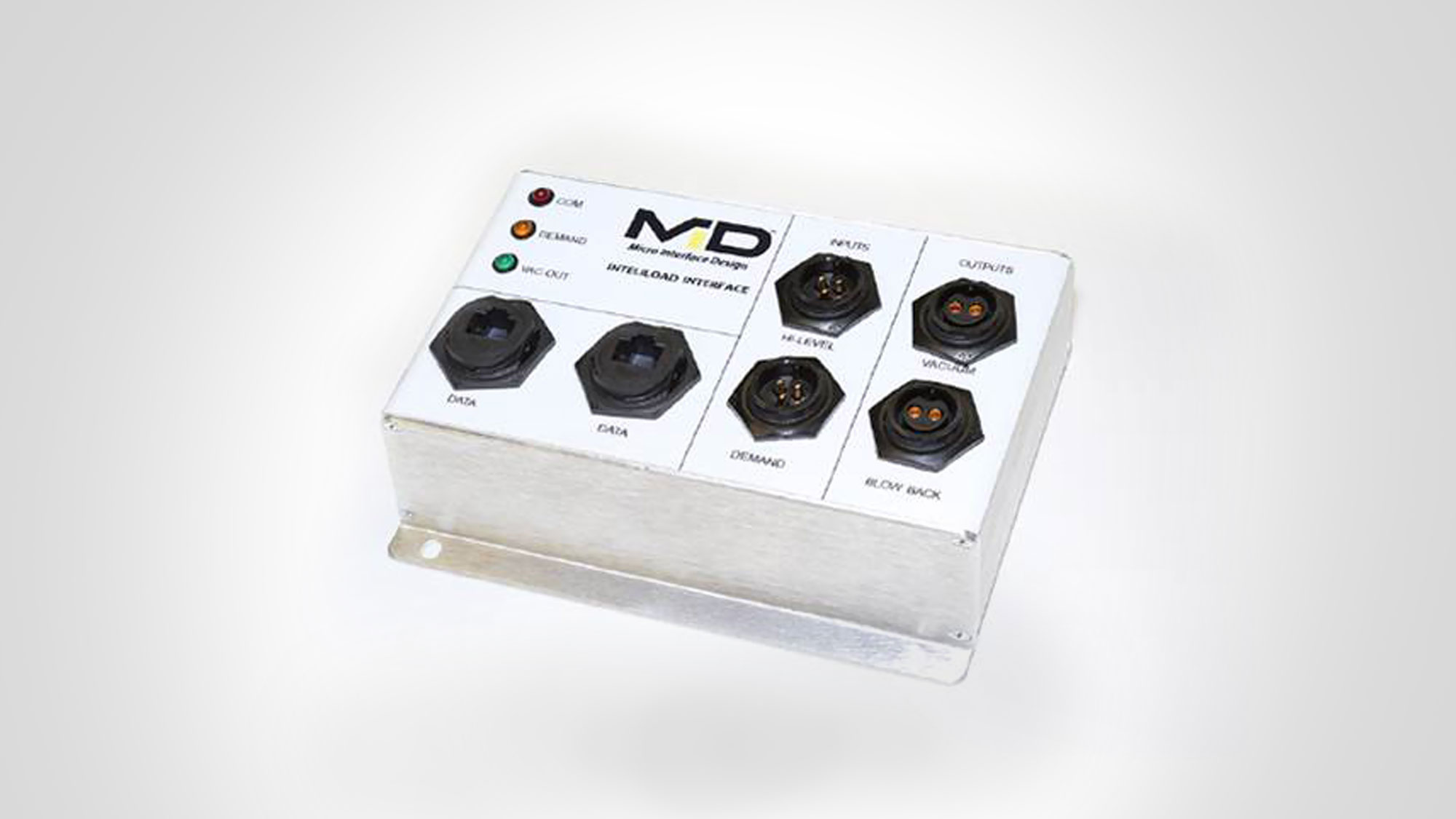

InteliLoad? Intelligent Loader Interface:

Simple twisted pair serial wire communication between loaders, no requirement to hard wire each loader directly to master control

  • Dimensions, height 3.5″, width 6.25″, depth 4.75″, Weight 2.5 pounds
  • Electrical power input of 120 or 240 VAC, 50 or 60 Hz
  • Fused power input
  • Power On/Off switch (lit)
  • Heavy Duty DB 15 snap-in connector for I/O



  • Built in Serial RS232 and RS485
  • Comm. LED Indicator (red)
  • Demand LED Indicator (yellow)
  • Vacuum On LED Indicator (green)
  • Two year warranty on hardware
